Single vs Multi-Head Attention
One important fact about multi-head attention: it has the same parameter count as single-head attention. The difference is purely structural — same total Wqkv weights, partitioned into smaller q–k–v triples.

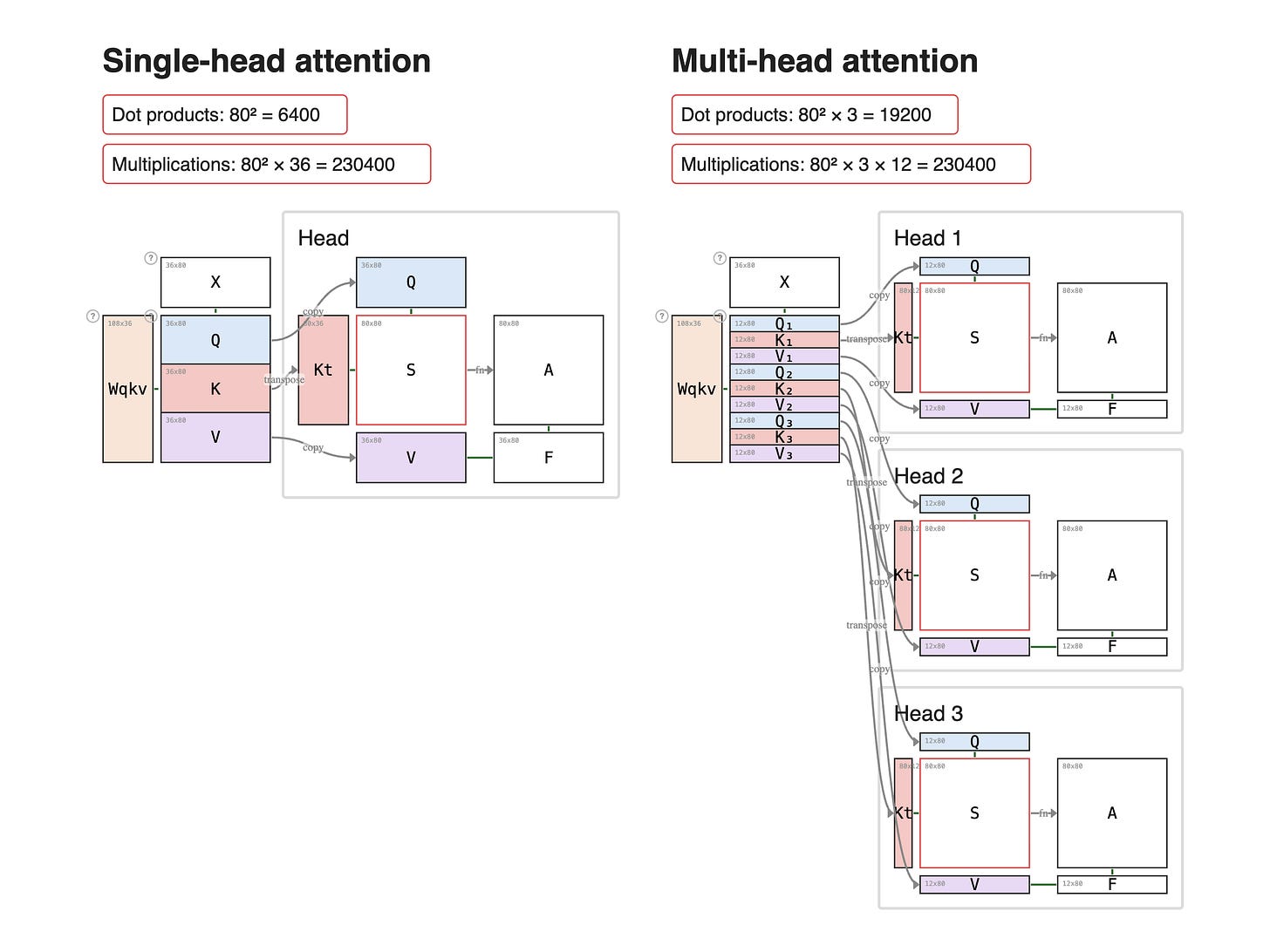

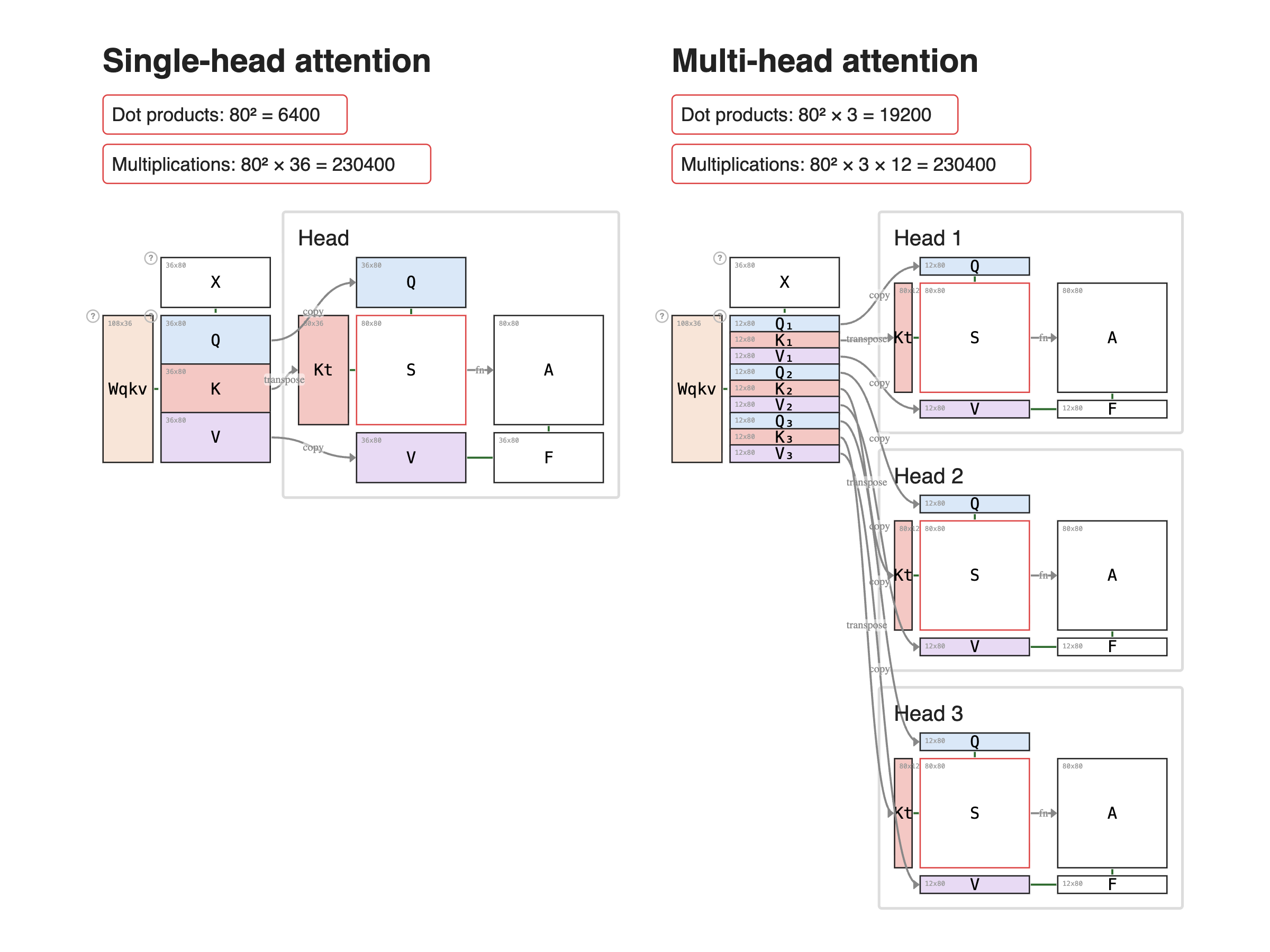

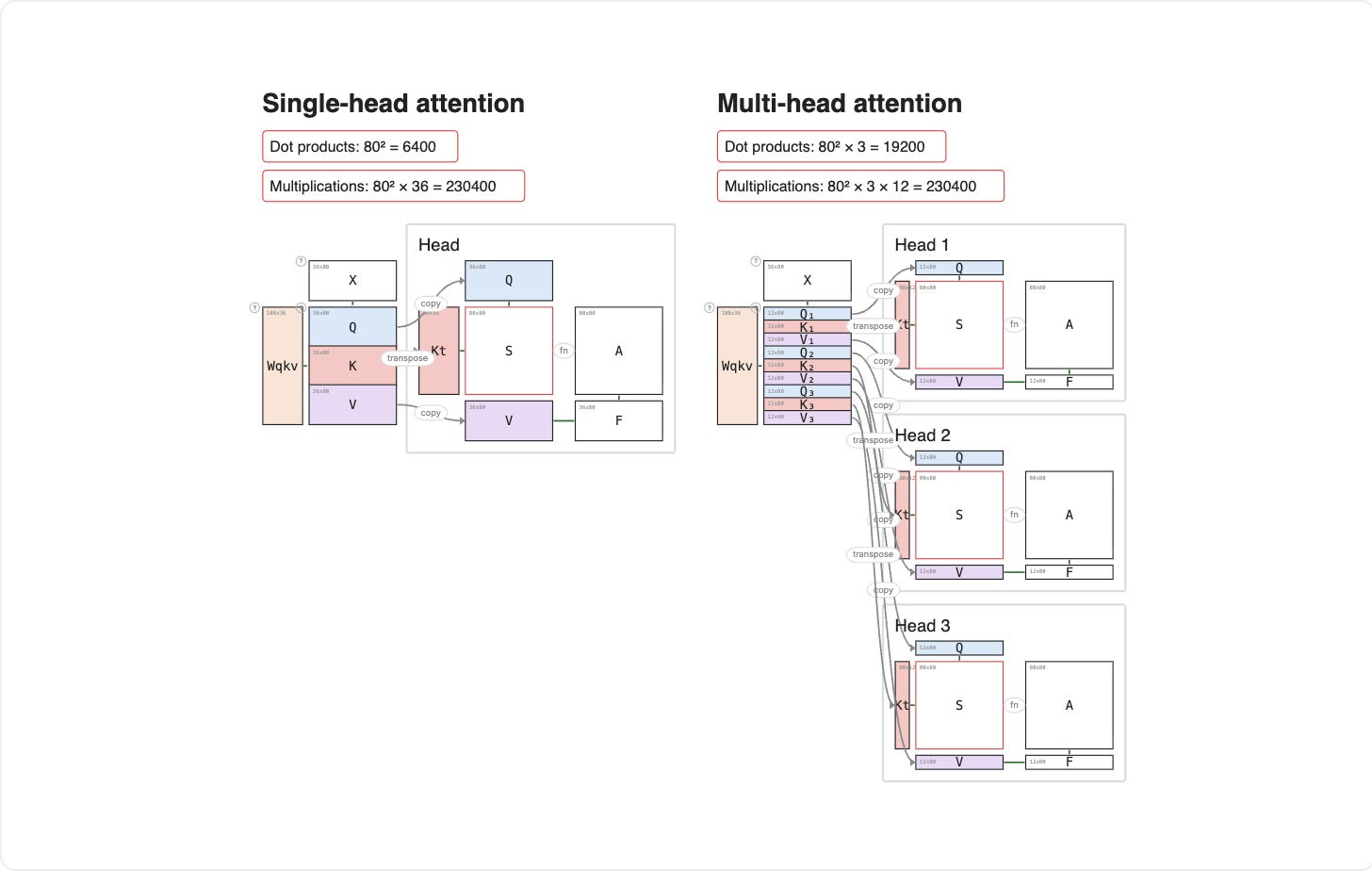

Look at the two diagrams below. Both Wqkv matrices have the same height — same number of weight rows, same number of parameters. What changes is how that single tall block is sliced.
Left. One head. The full Wqkv produces one big QKV: a tall Q (36 rows), a tall K, a tall V. One scoring computation runs over those full-width tensors.
Right. 3 heads. The same-height Wqkv is sliced into 3 smaller q–k–v triples — each 12 rows tall. 3 scoring computations run in parallel, each a thinner version of the left.
The compute trade-off — kind of. Same Wqkv weights. Multi-head runs the attention scoring `S = Kᵀ × Q` once per head, so the dot-product count multiplies by H.
Single-head: seq × seq = 80² = 6400 dot products
Multi-head: seq × seq × H = 80² × 3 = 19200 dot products (3×)
But each multi-head dot product is narrower — its inner dimension is `head_dim` instead of `H × head_dim`. So when you count actual scalar multiplications, the totals are equal:
Single-head: seq² × (H × head_dim) = 80² × 36 = 230400
Multi-head: seq² × H × head_dim = 80² × 3 × 12 = 230400
Same FLOPs. Multi-head buys you H independent attention patterns at no extra weight cost and no extra arithmetic cost — it's the same total compute, sliced into H finer-grained heads.
