SVM by Hand ✍️
Calculating AI by Hand: 4 of 28
Library › Calculating AI by Hand ✍️
Support Vector Machines (SVMs) reigned supreme in machine learning before the deep learning revolution.
In every model so far, both the forward and backward passes are matrix multiplications, which is exactly what GPUs accelerate. An SVM is different: its prediction is still built on matrix multiplication (dot products between vectors), but it is trained by convex optimization rather than backpropagation, so there is no matrix-multiplication backward pass to hand to a GPU. That is a big reason SVMs never rode the GPU and big-data wave that powered deep learning.
I took great effort to lay out this SVM exactly like an MLP, using the same matrix-multiplication format, so you can visually compare and see how similar the prediction step looks.
This exercise compares Linear and RBF SVMs: how each classifies two test vectors, using support vectors learned from six training vectors.
Setup

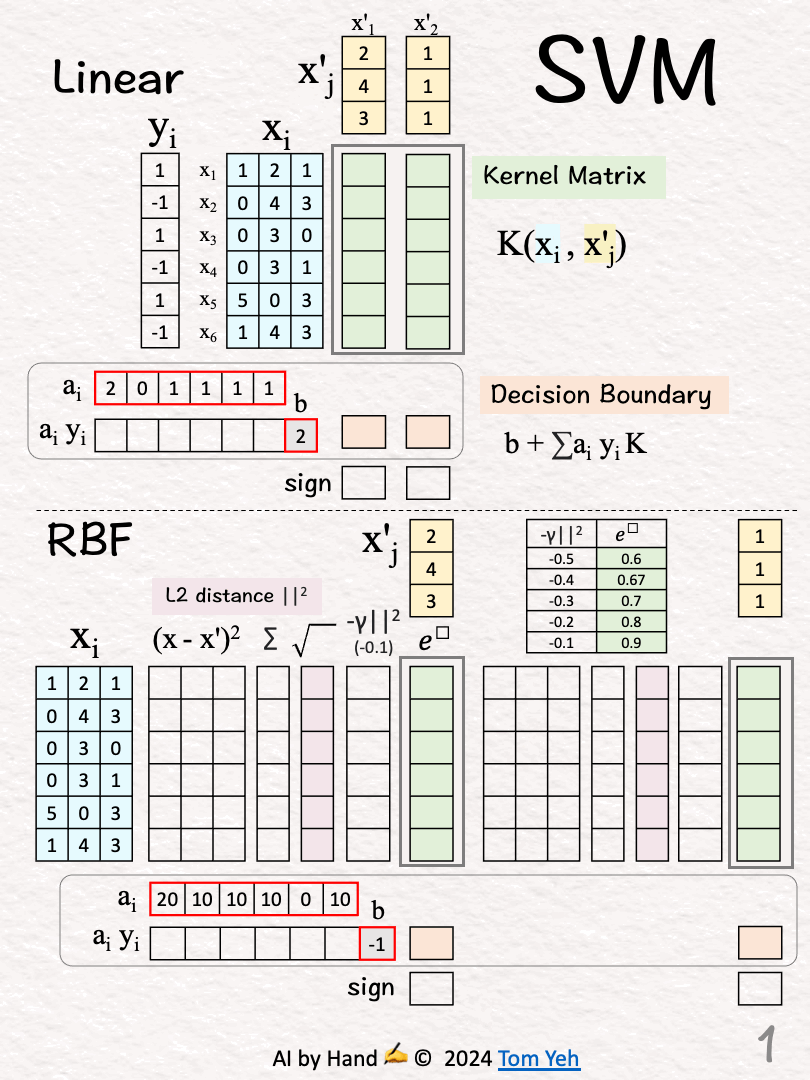

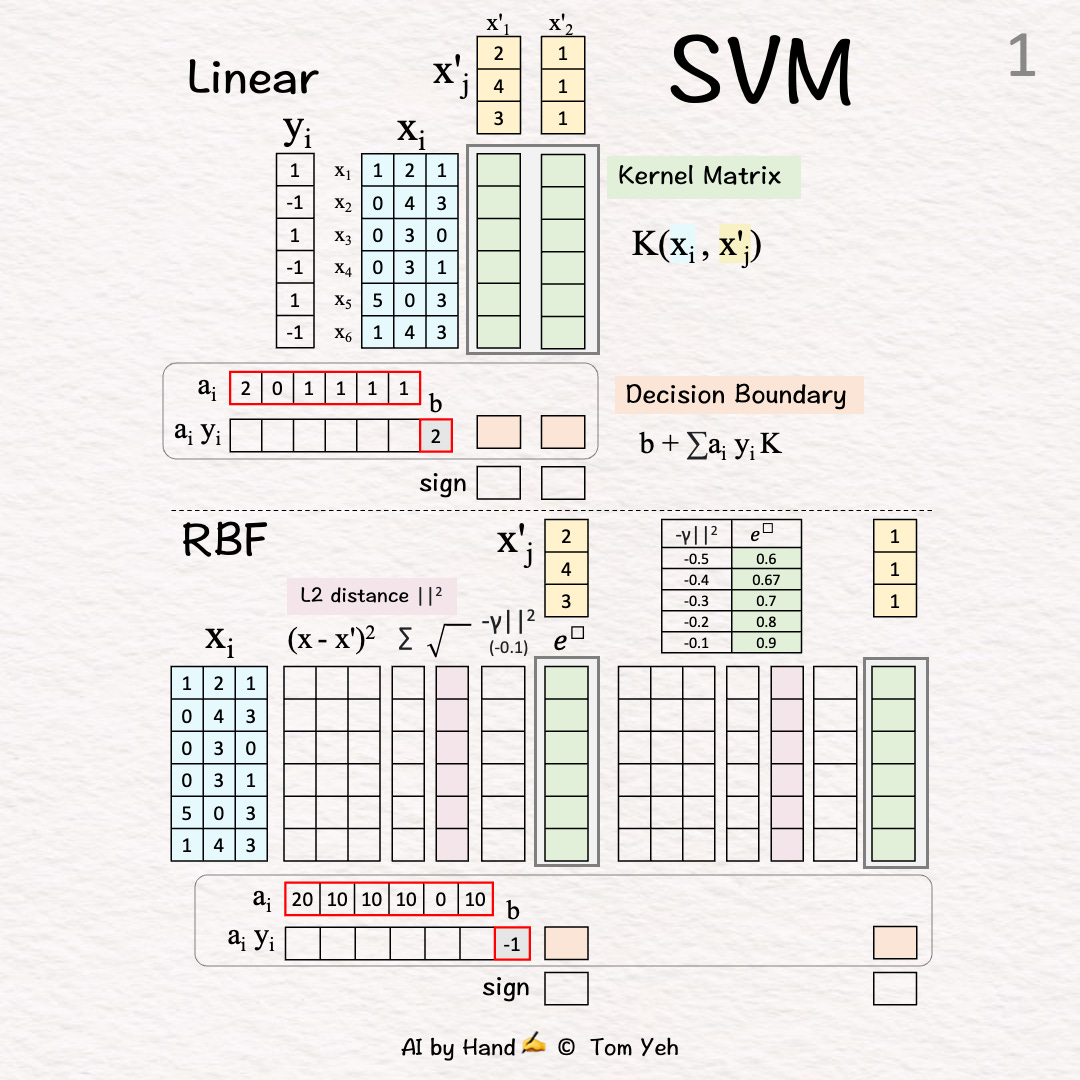

Step 1 of 19: Given
xi: Six training vectors (blue rows 🟦) yi: Labels
Using xi and yi, we learned ai and b (red borders):
ai: coefficient for each training vector i.
Non-zero: A Support Vector that defines the decision boundary
Zero: Too far from the decision boundary, ignored
b: bias (how much the decision boundary should be shifted)
x’j: Two test vectors (yellow columns 🟨)
(To simplify hand calculation, training and test vectors are not normalized.)
Linear SVM
Kernel Matrix
Step 2 of 19: Test Vector 1
Take dot product between the test vector 🟨 and every training vector 🟦
The dot product approximates the “cosine similarity” between two vectors
Output: 1st column of K
Step 3 of 19: Test Vector 2
Similar to [2]
Output: 2nd column of K
