BitNet is an extreme form of quantization: a linear layer's weights are restricted to just three values, [-1, 0, 1]. Because three choices take about 1.58 bits to encode, it is called a 1.58-bit model.

The payoff comes at inference: multiplying by weights that are only -1, 0, or +1 turns into simple addition and subtraction, far cheaper than full multiplication.

How does a BitNet work?

Setup

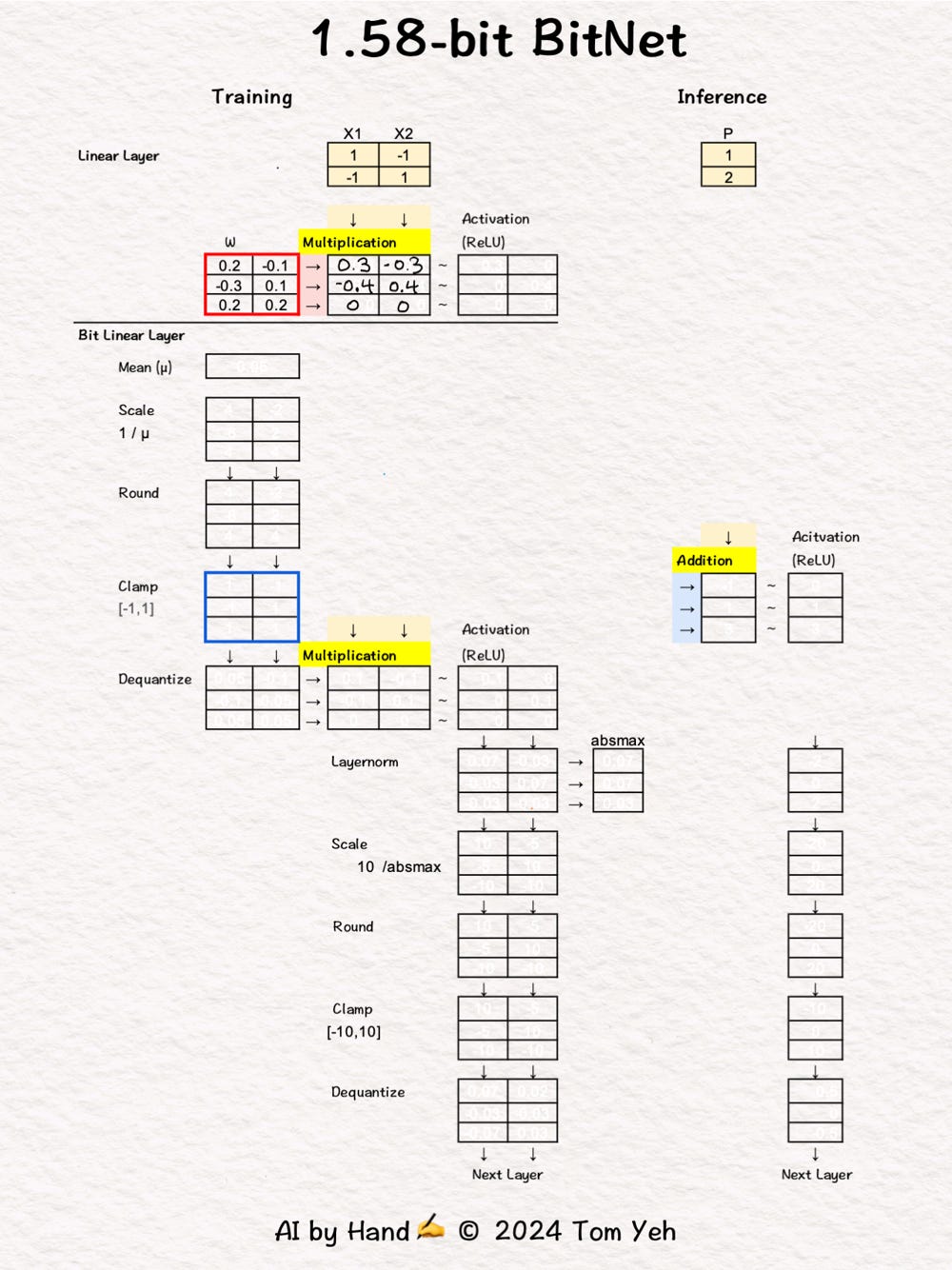

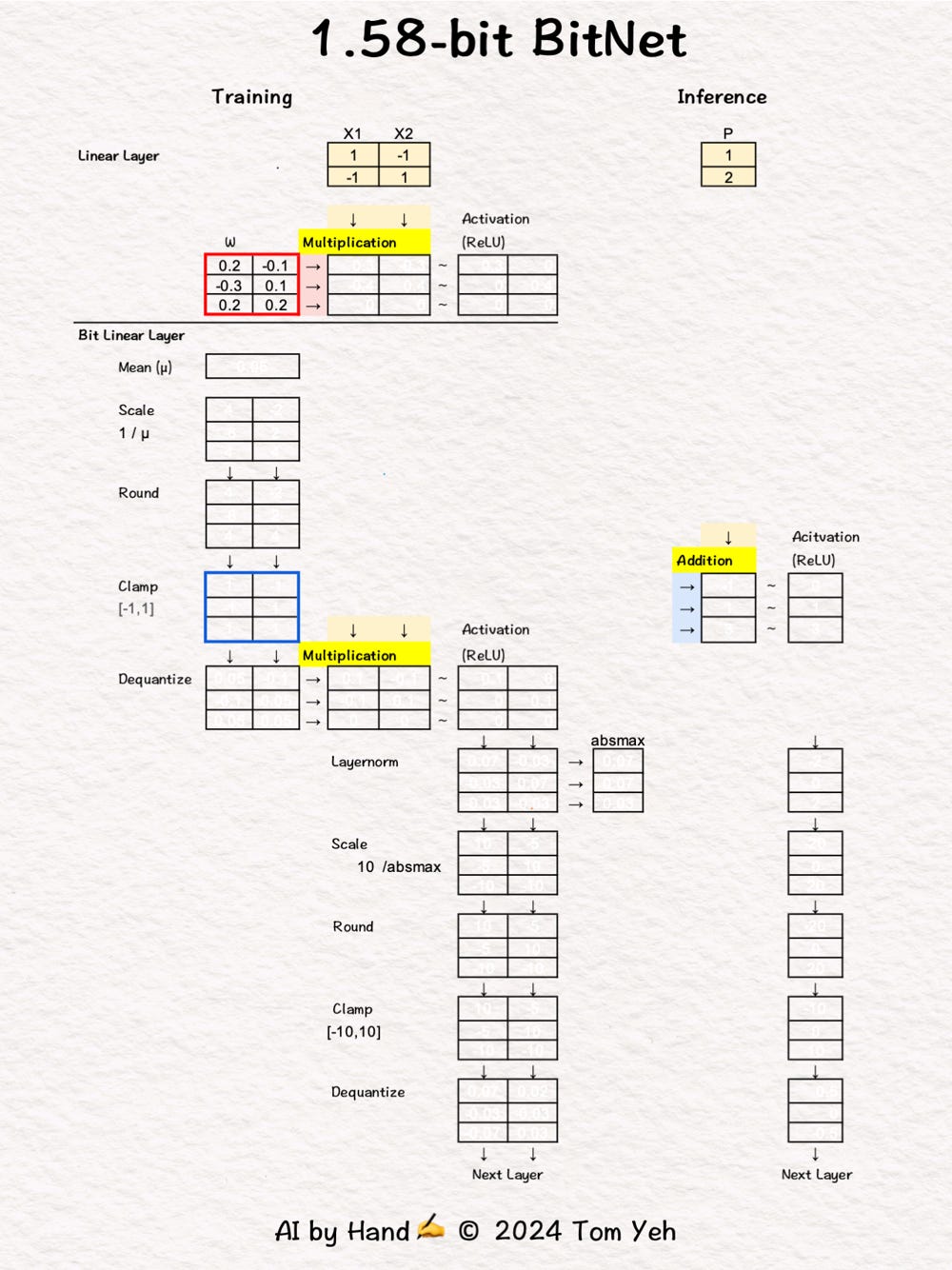

Step 1 of 17: Given

• Inputs and full-precision weights for a linear layer, shown side by side for Training and Inference.

Linear Layer

Step 2 of 17: Multiplication

• A regular linear layer multiplies the inputs by the full-precision weights.

---

Step 3 of 17: Activation

• Apply the ReLU activation function.
